Product Description:

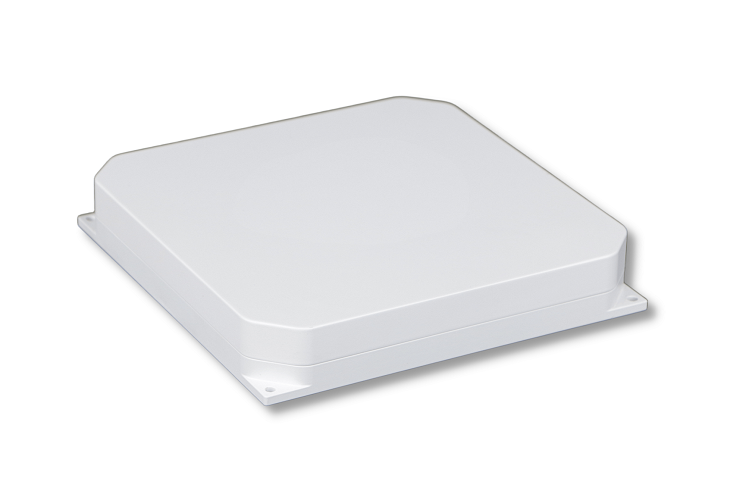

The antenna array consists of 4 BDS B1, GPS L1, GLONASS L1 anti-jam units.
The amplifier circuit has high out-of-band rejection and high linearity, ensuring that it can still work normally in the presence of strong jamming signals.
Built-in voltage regulator circuit can work normally in a wide input voltage range.
Main Function:
Receive satellite signals from GPS-L1, BDS-B1, Glonass-L1, and Galileo-E1.
It can reject various types of broadband and narrowband jamming such as harmonics, frequency sweeps, pulses, white noise, frequency modulation, amplitude modulation, and phase modulation for the GPS-L1, BDS-B1, and Glonass-L1 frequency bands.
Technical SpecificationsElectrical SpecificationsReceiving Frequency: 1559–1610 MHz.Anti-Jam Frequency Point: 1601–1575 MHz.Anti-Jam Ability:Single jam: $\ge$ 100dB.Triple jam: $\ge$ 85dB.Gain: $\ge$ 3dB (Elevation angle 90°).Signal Output Power: $\le$ -55dBm.Impedance: 50 ohms.Input Voltage: 18–36V.Power Consumption: $\le$ 15W.Mechanical & Environmental SpecificationsOutput Connector: SMA-K / J30J-15ZK.Dimension: $132 \times 132 \times 22$ mm.Weight: < 500g.Operating Temperature: -40°C to +70°C.Storage Temperature: -40°C to +85°C.Interface Definition (J30J-15ZK)No.NameDescription1, 2VCC IN18~36V DC Power Supply3, 4GNDGround5, 6422Rx+/-422 Signal reception7, 8422Tx+/-422 Signal transmission9TTL+5V
