Key Features
High-Precision Phase Center: Delivers enhanced accuracy with minimized survey error.
Wide Compatibility: Capable of receiving signals across multiple GNSS systems and frequency bands.
Rugged Construction: Features a metal bottom shell for a solid, reliable, and durable structure.

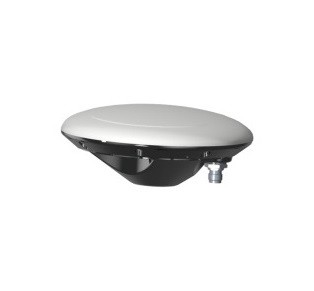

Aerodynamic Design: The disc-shaped profile ensures low wind resistance and a professional aesthetic.
IP67 Rated: Fully waterproof and protected against dust for reliable outdoor use.
Electrical SpecificationsFrequency Range: $1164 \sim 1300\text{MHz}$ & $1525 \sim 1615\text{MHz}$Polarization: Right-Hand Circular Polarization (RHCP)Antenna Gain: $\geq 7.0\text{ dBi}$ (Maximum gain)Axial Ratio: $\leq 3\text{dB}$ (at $90^{\circ}$ elevation angle)Front-to-Back Ratio: $\geq 20\text{ dB}$ ($\pm 60^{\circ}$)Phase Center Error: $\leq 2\text{mm}$LNA SpecificationsGain: $39 \pm 2\text{dB}$VSWR: $\leq 1.8$Noise Figure: $\leq 2.0\text{dB}$Gain Flatness: $\pm 1.5\text{dB}$Out-of-Band Rejection: $\geq 45\text{dBc}$ @ $F0 \pm 200\text{ MHz}$In-Band Group Delay Fluctuation: $\leq 5\text{ns}$Supply Voltage: $3.3 \sim 15\text{ VDC}$Operating Current: $\leq 50\text{mA}$Mechanical SpecificationsDimensions: $\Phi 152 \times 62\text{mm}$Connector Type: TNC-KWeight: $\leq 450\text{g}$Operating Temperature: $-40^{\circ}\text{C}$ to $+70^{\circ}\text{C}$Storage Temperature: $-40^{\circ}\text{C}$ to $+70^{\circ}\text{C}$
