Product Description & Key Features

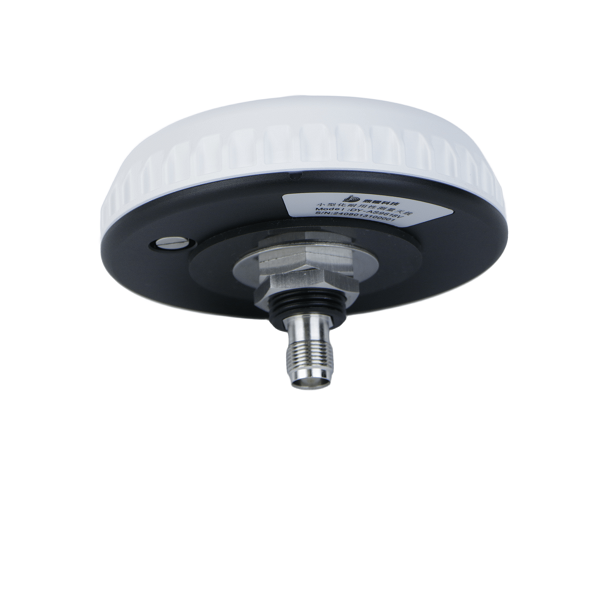

Advanced Technology: Adopting multi-feed point technology that provides a more accurate phase value and reduces the impact of the antenna on survey error.
Durability: The antenna has strong anti-vibration and shock resistance, making it the preferred choice for high-precision operations of most engineering machinery.
Wide Compatibility: Supports BDS, GPS, GLONASS, GALILEO, QZSS, SBAS, IRNSS, and L-Band multi-system compatibility.
Compact Design: Features a unique structural design that is compact, light, reliable, and durable, suitable for complex and harsh environments.
Environmental Protection: Includes a waterproof sealing design to support various outdoor environments.
Here is the comprehensive technical breakdown transcribed from the final set of images provided:Product Overview & Key FeaturesMulti-Feed Point Technology: Adopts advanced multi-feed point technology to provide accurate phase values and minimize survey errors.System Compatibility: Supports multi-system compatibility including BDS, GPS, GLONASS, GALILEO, QZSS, SBAS, IRNSS, and L-Band.High Durability: Engineered with strong anti-vibration and shock resistance, making it ideal for high-precision engineering machinery.Weather Resistance: Features a waterproof sealing design for operation in complex and harsh outdoor environments.Technical SpecificationsElectrical Specifications (Passive Antenna)Frequency Range: 1164 MHz ~ 1300 MHz & 1525 MHz ~ 1610 MHz.Gain: $\ge$ 4 dBi (Elevation angle 90°).Polarization: RHCP.Axial Ratio: $\le$ 3 dB (Elevation angle 90°).VSWR: $\le$ 1.5.Impedance: 50 $\Omega$.Directional Pattern Shape: Horizontal omnidirectional, vertical hemispherical beam.LNA (Low Noise Amplifier) SpecificationsFrequency Range: 1164 MHz ~ 1300 MHz & 1525 MHz ~ 1610 MHz.LNA Gain: 39 $\pm$ 2 dB.VSWR: < 2.0.Noise Figure: $\le$ 2.0 dB.Gain Flatness: $\pm$ 2 dB.In-Band Group Delay Fluctuation: $\le$ 5 ns.EMC (RF Input Static): Meets IEC6 1000-4-2 (ESD) standard.Voltage: 3.3 ~ 16.0 VDC.Working Current: $\le$ 50 mA.Mechanical & Environmental SpecificationsOutput Connector: TNC-K.Dimension: $\Phi$ 95 $\times$ 58.7 mm.Weight: < 250 g.Operating Temperature: -45°C ~ +85°C.Storage Temperature: -55°C ~ +85°C.Waterproof Level: IP67.Vibration: 10-2000 Hz, RMS = 9.9 g.Shock: Peak acceleration 75 g, 6 ms pulse, 3 axes/6 directions (18 times total).Humidity: 95%.Installation: Fixed by double nuts.
