Product Description

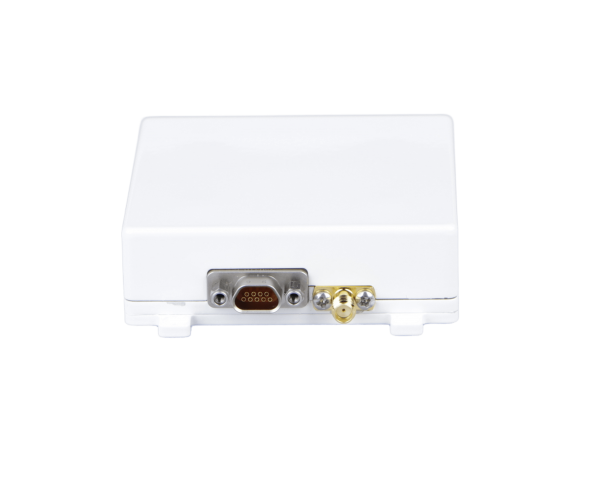

The ultra-small four-element anti-jamming antenna measures only 65mm * 65mm * 19.5mm. It supports the four-element broadband anti-jamming function of the Beidou-3 B1/L1 frequency point. It can reject various broadband and narrowband jamming such as harmonics, sweep frequency, pulse, frequency modulation, phase modulation, etc.. In the B1/L1 frequency band, the antenna integrates an active anti-jamming receiving antenna, which includes core components such as an anti-jamming RF chip, intermediate frequency filter, ADC, anti-jamming digital baseband processing, and DAC.
Main Function
Satellite Signal Reception: Receive satellite signals from GPS-L1 and BDS-B1.
Jamming Rejection: It can reject various types of broadband and narrowband jamming such as harmonics, sweep frequency, pulse, frequency modulation, amplitude modulation, phase modulation, etc. for GPS-L1 and BDS-B1 frequency bands.
Software Support: Features a software online upgrade function.
Technical SpecificationsElectrical SpecificationsReceiving Frequency: $1575.42 \pm 1.023\text{ MHz}$ & $1561.098 \pm 2.046\text{ MHz}$Anti-Jam Frequency Point: $1575.42 \pm 1.023\text{ MHz}$ & $1561.098 \pm 2.046\text{ MHz}$Anti-Jam Ability: Single jam $\ge$ 85dB, triple jam $\ge$ 75dBSignal Output Power: $-70 \pm 5\text{ dBm}$Input Voltage: 4.5 ~ 5.5 VDCPower Consumption: $\le$ 6.5WMechanical & Environmental SpecificationsOutput Connector: SMA-K (RF) / J30J-9ZK (Data interface)Dimension: 65 × 65 × 19.5 mmWeight: $\le$ 200gOperating Temperature: -40°C ~ +60°CStorage Temperature: -55°C ~ +75°CInterface Definition (J30J-9ZK)No.NameDescription1VCC IN4.5 ~ 5.5V DC Power Supply (Typical: 5VDC)2VCC IN4.5 ~ 5.5V DC Power Supply (Typical: 5VDC)3GNDGround4GNDGround5RS232A_RXDSerial port A input6RS232A_TXDSerial port A output7RS232B_RXDSerial port B input8RS232B_TXDSerial port B output9RS232_GNDSerial port GNDIntegration InstructionsCurrent Design: The module has high overall power consumption; pay close attention to the power supply current design during integration.Heat Dissipation: Due to the power consumption, pay close attention to the heat dissipation design during integration.
